Power Supplies

Pertronic Industries offer a range of fully monitored power supplies, suitable for powering ancillary fire alarm equipment

< Back to category

PDB

Power Distribution Board

F120PDB

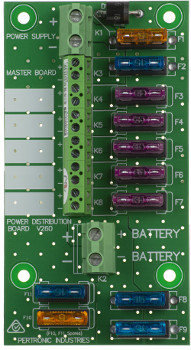

The Power Distribution Boards (F120PDB & PDB-GF) are fuse panels for distributing power from ELV battery power supply systems.

Each board has a parallel pair of input fuses feeding a common supply bus. The bus feeds seven separately-fused output circuits.

The F120PDB has blade fuses. The PDB-GF has 5 mm x 20 mm glass fuses.

Features

  • Fuse board for power distribution in 12 Vdc, 24 Vdc, and other ELV power systems
  • Reverse polarity protection for connected systems
  • Twin parallel battery input fuses
  • Seven separately-fused output circuits
  • Maximum total system (input) current: 30 Amps
  • Maximum system voltage: 60 Volts dc

Ordering Information

Product Code

Description

PDB-GF

Power Distribution Board, 5mm x 20mm Glass Fuses

F120PDB

F120A Power Distribution PCB assy V220 (MK2, Blade Fuses)
